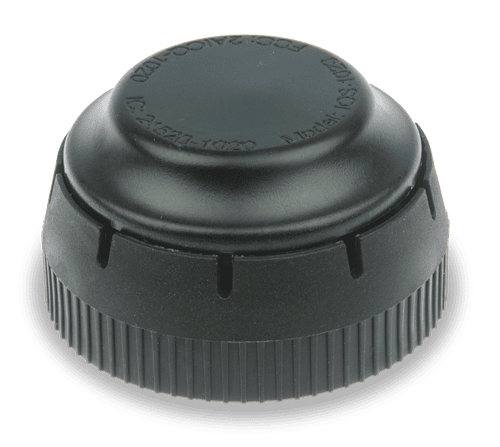

ELD Connector WiFi + Bluetooth LE + GPS
Non-returnable
$159.00
The hardware connects directly to the J1939 port and is compatible with virtually all ELD systems. The connector comes in various versions to support your needs, and custom firmware and development API is also available. May require OBD-II/J1962 to J1939 Adapter.
Product Details
- 802.11bgn WiFi interface with embedded antenna
- Bluetooth 4.2 Low Energy interface with embedded antenna
- 66-channel high-performance/sensitivity GPS receiver with embedded antenna
- Dual-core 240MHz processor
- 2MB flash memory, good for more than 30 days of ELD data buffering
- Up to 3x CAN bus interfaces allow access to all vehicle data
- 1x J1708 interface
- OEM-grade and certified vehicle interfaces shared with other IOSiX products
- Support for J1939, ISO-15765, J1587, and other vehicle protocols for maximum compatibility
- Contains over 100 field-identified corrections to vehicle information
- Firmware easily updateable over-the-air
- Operates from 4-30V, can withstand -30 to +100V
- Industrial -40 to +125 C operational temperature range
- FCC and IC certified
